DUNNAGE AIRBAGS
DURABAG
Durabags, are made of durable woven pp fabric, which is light, humid proof and flexible in between odd shapes. Thanks our Dunnage bags’ special lamination treatment on the outside shell of Durabags, its durable to extreme and unexpected sharp objects in loading enviroments and containers.
The specific lamination process also decreases the sliding possibility of Durabags dring transportation.
Durabag, Dunnage bags, working principal is to brace the goods by filling the voids locks and protects your cargo from shifting side to side and up down movements.
Advantages Of Durabag
- Resistant to slip during the movements in transport
- Reusable
- Recyclable
- Humid resistant
- Flexible
- Certified

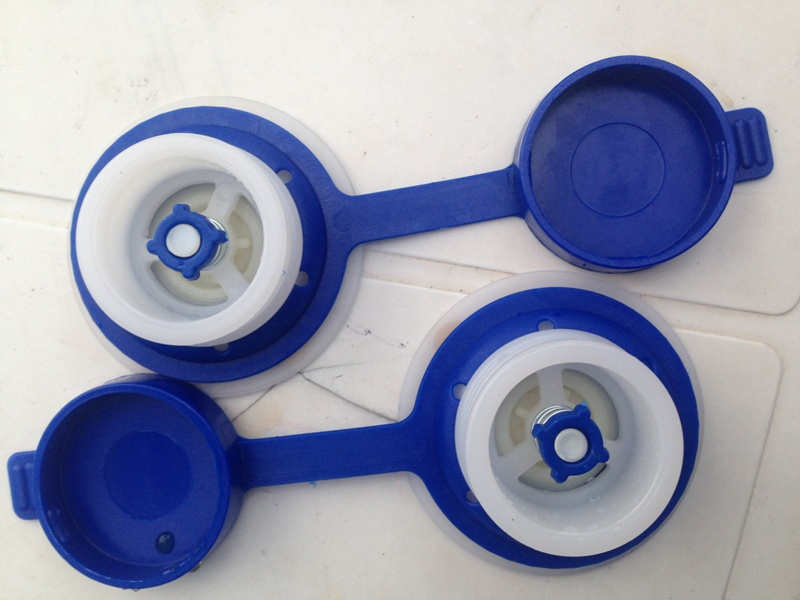

Venturi system, maxflow airvalves are resuable and easy to adjust pressure or deflate the bag at customer side.
User friendly Lockon Inflator system, provides easy placing and quick application during loading of the container.
| Do’s in Dunnage Bag application |
| – Always use the right size and level of Dunnage bags |
| – Check the valve is closed and if there is any damage in the bag |
| – Make sure the Dunnage bag does not contact with sharpe object |
| – Be sure that the Dunnage bag is at least 3 cm above the floor and the pallets |
| – Check the pressure for over inflation |
| – Close the cap and wait for 20 min. for any reason loss of pressure |
| Dont’s in Dunnage Bag Application |
| – Do not place and fill the airbag greater than recomended space |
| – Do not place the airbag between cargo and the doorway |
| – Do not use improper airbags |
| – Do not inflate a dunnage bag without a buffer against sharp objects |
| Levels: | Working Pressure | Method of Transport |
| OTR | 2 psi | Mainly used in Truck shipments |
| L/1 | 2,8 psi | Sea Conatiner and Trucks – Vertical or Horizontal Applications |
| L/2 | 6 psi | In rail cars they can be used for filling lengthwise voids in loads weighing up to 75,000 lbs. |
| L3&4 | 8 psi | in rail cars with load weights from 75.000 LBS to 205.,000 LBS. |
| Standard Sizes in cm. | Standart Sizes Inch |
| 60X90 | 24 x 36 |
| 90X90 | 36 x36 |
| 90X120 | 36 x 48 |
| 90X150 | 36 x 60 |
| 90X180 | 36 x72 |
| 90X210 | 36 x 84 |
| 90 x 240 | 36 x 96 |
| 120X120 | 48x 48 |
| 120X150 | 48 x 60 |
| 120X180 | 48 x 72 |
| 120X210 | 48 x 84 |
| 120X240 | 48 x 96 |
| 100X100 | 40 x 40 |
